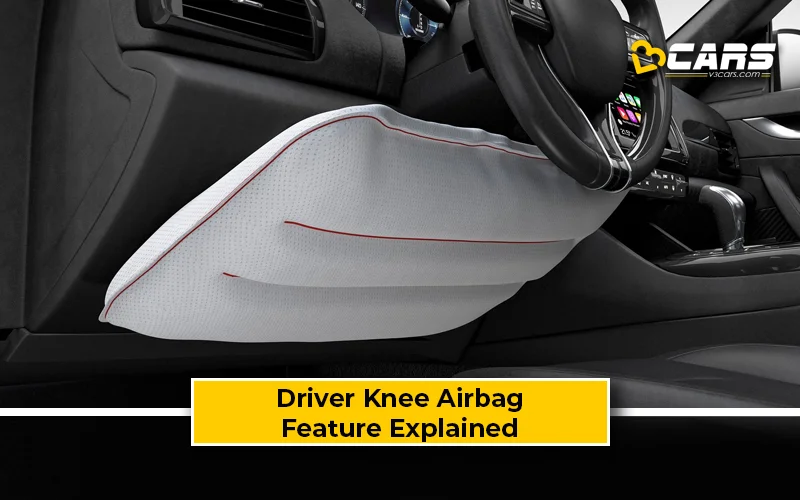

Driver Knee Airbag – Feature Explained

What Is A Driver Knee Airbag?

A driver knee airbag is a safety device installed in a vehicle to protect the driver’s knees and lower legs during a frontal collision. It is typically located in the lower portion of the dashboard, below the steering column.

How Does A Driver Knee Airbag Work?

Here’s how a driver knee airbag functions in the event of a crash:

1. Frontal Collision Sensors: The vehicle is equipped with sensors that detect the sudden deceleration and impact forces associated with a frontal collision. These sensors are typically located in the front of the vehicle.
2. Rapid Detection: The sensors send an electrical signal to the airbag control unit.
3. Signal To Inflator: The airbag control unit determines the severity of the collision and, if necessary, sends a signal to the knee airbag inflator.
4. Airbag Inflation: The inflator uses a chemical reaction to rapidly produce a large volume of gas (typically argon or nitrogen). This gas fills the airbag within milliseconds.
5. Cushioning: The inflated airbag forms a protective cushion between the driver’s knees and lower legs and the hard surfaces of the dashboard and steering column.
6. Energy Absorption and Distribution: The knee airbag absorbs some of the impact energy and distributes the remaining force across a larger area of the driver’s lower body. This helps to:
   • Reduce the risk of fractures to the femur (thighbone), tibia, and fibula (lower leg bones).
   • Prevent or minimise knee joint injuries.
   • Help keep the driver in a better position for the frontal airbag and seatbelt to provide optimal protection.
7. Deflation: The airbag then quickly deflates through vents, allowing the driver some freedom of movement.

What Are The Pros And Cons Of Driver Knee Airbags?

Here are the pros, or advantages, of driver knee airbags:

• Reduced Lower Body Injuries: Significantly reduces the risk of knee, femur, tibia, and fibula fractures, as well as knee joint injuries, during frontal collisions.
• Injury Prevention: Helps to prevent submarining, which is when the occupant slides underneath the seatbelt, potentially leading to serious abdominal and spinal injuries.
• Enhanced Restraint System Effectiveness: Works in conjunction with seatbelts and front airbags to provide a more comprehensive restraint system.
• Increasing Availability: While not as common as front or side airbags, knee airbags are becoming increasingly available in many new vehicle models.

Here are the cons, or disadvantages, of driver knee airbags:

• Limited Protection Area: Knee airbags are designed specifically to protect the knees and lower legs; they offer no protection to other parts of the body.
• Potential for Minor Injuries: Like other airbags, deployment can sometimes cause minor abrasions or skin irritation.
• Effectiveness Depends on Seating Position: The effectiveness of knee airbags can be affected by the driver’s seating position.

Are Driver Knee Airbags A Worthwhile Safety Feature?

Yes, driver knee airbags are a valuable addition to a vehicle’s safety system. They provide crucial protection to the lower extremities, reducing the risk of serious injuries in frontal collisions and enhancing the overall effectiveness of the restraint system.

Is It Possible To Install Driver Knee Airbags From The Aftermarket?

Installing driver knee airbags aftermarket is extremely complex and generally not recommended. Here’s why:

• Complex Integration: It requires extensive modification to the vehicle’s dashboard as well as integration with the ECU and sensors.
• Reliability Concerns: Aftermarket systems may not be as reliable or thoroughly tested as factory-installed airbags.
• Safety Risks: Improper installation can lead to deployment failure, unintended deployment, or other malfunctions, potentially causing serious injury or death.
• Warranty Issues: Modifying a vehicle’s safety systems can void the manufacturer’s warranty.

What Is The Cost Of Replacing A Driver Knee Airbag?

The cost of replacing a deployed driver knee airbag can vary significantly depending on:

• Vehicle Make and Model: Different vehicles have different airbag systems and replacement part costs.
• Parts Required: In addition to the airbag module itself, other components like the headliner and trim panels may need to be replaced.
• Labour Costs: Installation costs can vary depending on the complexity of the job.

Generally, replacing a side curtain airbag can range from Rs. 10,000 to Rs. 30,000 or more based on the make and model.
